• Nakakamit ng advanced grinding technology ang ultra-high blade diameter at shank diameter accuracy, na angkop para sa precision molds at parts processing.
• Ginagamit ang mataas na wear-resistant coating. Tinitiyak ng arc transition structure ang mataas na resistensya sa pagbasag at nagbibigay-daan sa pangmatagalang pagputol ng matigas na bakal.

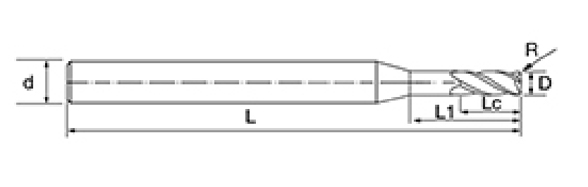

| Hindi. | diameter D | R Anggulo R | Haba ng plauta Lc | Epektibong Haba L1 | Pangkalahatang Haba L | Shank Dia d | Bilang ng Blade F |
| NNCH-4RSP-D1-L3 | 1 | 0.1 | 1 | 3 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L4 | 1 | 0.1 | 1 | 4 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L6 | 1 | 0.1 | 1 | 6 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L8 | 1 | 0.1 | 1 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L3 | 1 | 0.2 | 1 | 3 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L4 | 1 | 0.2 | 1 | 4 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L6 | 1 | 0.2 | 1 | 6 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L8 | 1 | 0.2 | 1 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L10 | 1 | 0.2 | 1 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L12 | 1 | 0.2 | 1 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D1-L14 | 1 | 0.2 | 1 | 14 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L6 | 1.5 | 0.1 | 1.5 | 6 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L8 | 1.5 | 0.1 | 1.5 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L10 | 1.5 | 0.1 | 1.5 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L12 | 1.5 | 0.1 | 1.5 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L6 | 1.5 | 0.2 | 1.5 | 6 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L8 | 1.5 | 0.2 | 1.5 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L10 | 1.5 | 0.2 | 1.5 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L12 | 1.5 | 0.2 | 1.5 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D1.5-L16 | 1.5 | 0.2 | 1.5 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L8 | 2 | 0.1 | 2 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L10 | 2 | 0.1 | 2 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L12 | 2 | 0.1 | 2 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L8 | 2 | 0.2 | 2 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L10 | 2 | 0.2 | 2 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L12 | 2 | 0.2 | 2 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L16 | 2 | 0.2 | 2 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L18 | 2 | 0.2 | 2 | 18 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L20 | 2 | 0.2 | 2 | 20 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L8 | 2 | 0.5 | 2 | 8 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L10 | 2 | 0.5 | 2 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L12 | 2 | 0.5 | 2 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D2-L16 | 2 | 0.5 | 2 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L10 | 3 | 0.1 | 3 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L12 | 3 | 0.1 | 3 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L16 | 3 | 0.1 | 3 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L10 | 3 | 0.2 | 3 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L12 | 3 | 0.2 | 3 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L16 | 3 | 0.2 | 3 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L20 | 3 | 0.2 | 3 | 20 | 60 | 6 | 4 |
| NNCH-4RSP-D3-L25 | 3 | 0.2 | 3 | 25 | 75 | 6 | 4 |
| NNCH-4RSP-D3-L30 | 3 | 0.2 | 3 | 30 | 75 | 6 | 4 |
| NNCH-4RSP-D3-L10 | 3 | 0.5 | 3 | 10 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L12 | 3 | 0.5 | 3 | 12 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L16 | 3 | 0.5 | 3 | 16 | 50 | 4 | 4 |
| NNCH-4RSP-D3-L20 | 3 | 0.5 | 3 | 20 | 60 | 6 | 4 |
| NNCH-4RSP-D3-L25 | 3 | 0.5 | 3 | 25 | 75 | 6 | 4 |
| NNCH-4RSP-D3-L30 | 3 | 0.5 | 3 | 30 | 75 | 6 | 4 |
| NNCH-4RSP-D4-L12 | 4 | 0.2 | 4 | 12 | 60 | 6 | 4 |
| NNCH-4RSP-D4-L16 | 4 | 0.2 | 4 | 16 | 60 | 6 | 4 |
| NNCH-4RSP-D4-L20 | 4 | 0.2 | 4 | 20 | 60 | 6 | 4 |
| NNCH-4RSP-D4-L25 | 4 | 0.2 | 4 | 25 | 75 | 6 | 4 |
| NNCH-4RSP-D4-L30 | 4 | 0.2 | 4 | 30 | 75 | 6 | 4 |
| NNCH-4RSP-D4-L12 | 4 | 0.5 | 4 | 12 | 50 | 6 | 4 |
| NNCH-4RSP-D4-L16 | 4 | 0.5 | 4 | 16 | 50 | 6 | 4 |
| NNCH-4RSP-D4-L20 | 4 | 0.5 | 4 | 20 | 60 | 6 | 4 |
| NNCH-4RSP-D4-L25 | 4 | 0.5 | 4 | 25 | 75 | 6 | 4 |
| NNCH-4RSP-D4-L30 | 4 | 0.5 | 4 | 30 | 75 | 6 | 4 |
| Serye ng Tool | diameter | Radius | Corner Radius | Haba ng plauta | Epektibong haba | Pangkalahatang haba | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNCH Ultra Hard at High-Precision Carbide End Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

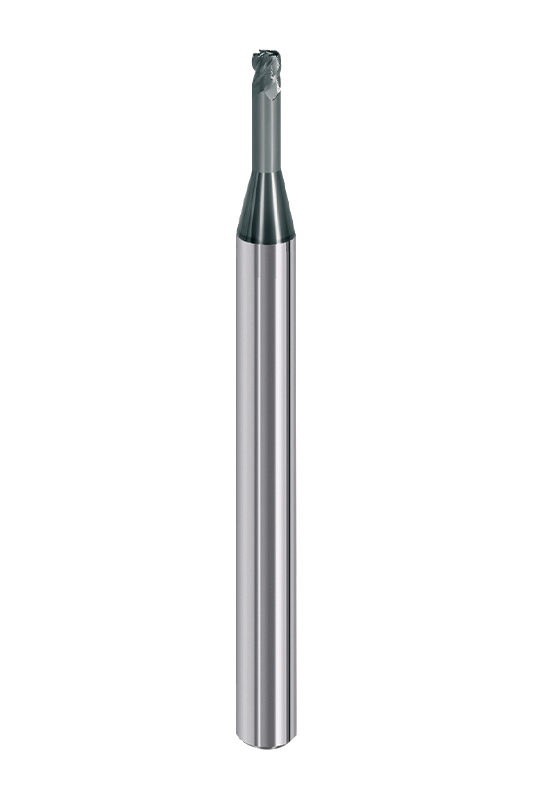

Ang NNCH-4RSP 4 flute deep groove round nose ultra hard high-precision end mill tool ay nagbibigay ng iba't ibang kumbinasyon ng laki, na sumasaklaw sa iba't ibang diameter ng tool, haba ng blade, epektibong haba at mga detalye ng R angle upang matugunan ang iba't ibang pangangailangan sa precision machining. Ang mga gumagamit ay maaaring malayang pumili ng pinaka-angkop na mga detalye ng tool ayon sa mga partikular na sitwasyon ng aplikasyon upang mapabuti ang kahusayan at katumpakan ng machining.
Ang malalim na groove round nose na disenyo ay epektibong nagpapabuti sa kapasidad ng pag-alis ng chip at nag-o-optimize ng cutting stability. Ang mas malaking R angle ay nagpapahusay sa lakas ng tool at binabawasan ang konsentrasyon ng stress sa panahon ng pagputol, sa gayon ay nagpapahaba ng buhay ng tool. Tinitiyak ng four-edge structure ang mas mataas na machining efficiency habang isinasaalang-alang ang surface finish at precision, at angkop ito para sa mga field na may mataas na pangangailangan tulad ng precision molds at paggawa ng mga bahagi.
Gumagamit ang tool ng advanced na ultra-fine particle carbide material at pinagsasama ang high-performance na MT coating technology upang hindi lamang mapabuti ang wear resistance, ngunit epektibong mabawasan ang cutting resistance. Ang napakataas na tigas ng HRC65 ay nagsisiguro ng mahusay na pagganap sa machining ng mga high-hardness na materyales habang pinapanatili ang mahusay na dimensional na katumpakan at katatagan.
Ang produktong ito ay angkop para sa precision machining ng mga materyales tulad ng high-hardness steel (45-65HRC), heat-treated steel, stainless steel, alloy steel at copper alloy, lalo na para sa high-precision na paggawa ng amag at mahusay na pagputol ng mga high-hardness na materyales.
