American Unified Thread (UN): Sumusunod sa pamantayan ng ANSI/ASME B1.1, ang anggulo ng thread ay 60°.
Tatlong ngipin na disenyo: May tatlong cutting edge sa tool, na maaaring magproseso ng maramihang mga thread nang sabay-sabay upang mapabuti ang kahusayan sa pagproseso.
Inirerekomendang tigas ng pagproseso: HRC≤45°

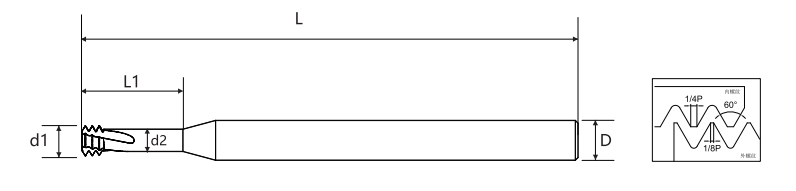

| Pitch | Magaspang na Ngipin UNC | Mabuting Ngipin UNF | Diameter ng Blade d1 | Diameter ng Pag-iwas d2 | Mabisang Haba ng Blade L1 | Diameter ng hawakan D | Pangkalahatang Haba L | Bilang ng Blade | Diameter ng Bottom sa Ibaba |
| 80 | No.0-80 | 1.15 | 0.737 | 3.5 | 4 | 50 | 3 | 1.2 | |
| 72 | No.1-72 | 1.45 | 0.991 | 3.9 | 4 | 50 | 3 | 1.6 | |
| 64 | No.1-64 | No.2-64 | 1.4 | 0.884 | 4.2 | 4 | 50 | 3 | 1.5 |
| 56 | No.2-56 | No.3-56 | 1.65 | 1.06 | 5 | 4 | 50 | 3 | 1.8 |
| 48 | No.3-48 | No.4-48 | 1.9 | 1.212 | 6 | 4 | 50 | 3 | 2.1 |
| 40 | No.4, No.5-40 | No.6-40 | 2.1 | 1.275 | 6 | 4 | 50 | 3 | 2.3 |
| 40 | No.5-40 | No.6-40 | 2.45 | 1.6 | 7.2 | 4 | 50 | 3 | 2.6 |
| 36 | No.8-36 | 3.3 | 2.383 | 8.7 | 4 | 50 | 3 | 3.5 | |
| 32 | No.6, No.8-32 | No.10-32 | 2.55 | 1.518 | 7.4 | 4 | 50 | 3 | 2.8 |
| 32 | No.8-32 | No.10-32 | 3.2 | 2.168 | 10 | 4 | 50 | 3 | 3.5 |
| 32 | No.10-32 | 3.8 | 2.768 | 10.3 | 4 | 50 | 3 | 5.5 | |
| 28 | 1/4"-28 | 5.25 | 4.071 | 13.2 | 6 | 50 | 3 | 3.9 | |
| 24 | No.10-24 | 5/16"-24 | 3.58 | 2.204 | 10.2 | 4 | 50 | 3 | 6.9 |
| 24 | 5/16"-24 | 6.68 | 5.304 | 16.5 | 8 | 60 | 3 | 5.2 | |
| 20 | 1/4"-20 | 7/16"-20 | 4.88 | 3.229 | 13.4 | 6 | 50 | 3 | 9.9 |
| 20 | 7/16"-20 | 9.55 | 7.899 | 23 | 10 | 75 | 4 | 11.4 | |
| 18 | 5/16"-18 | 6.15 | 4.316 | 16.9 | 8 | 60 | 3 | 6.5 | |
| 16 | 3/8"-16 | 6.7 | 4.636 | 19.1 | 8 | 60 | 3 | 8 | |
| 14 | 7/16"-14 | 9 | 6.641 | 23.3 | 10 | 75 | 4 | 9.4 |

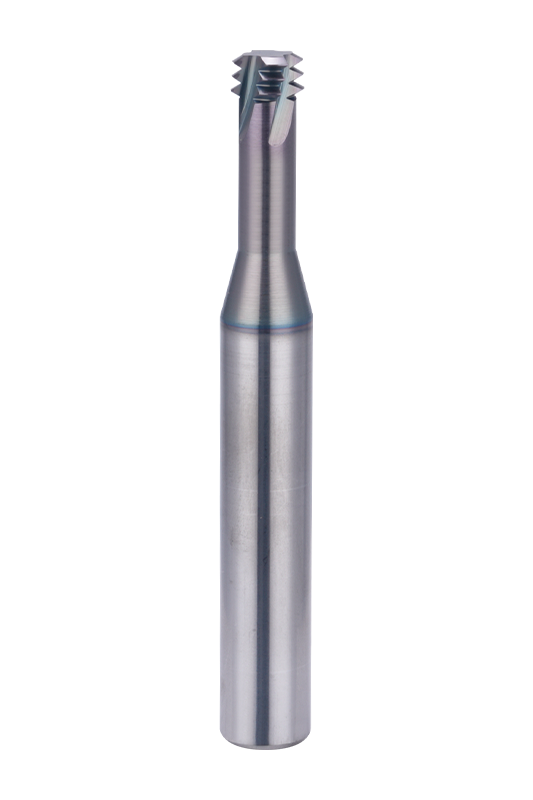

Ang 60°UN ANSI/ASME B1.1 Standard Tooth Thread Milling Cutter ay sumusunod sa ANSI/ASME B1.1 standard para sa Unified National (UN) na mga thread, na tinitiyak ang tumpak na geometry ng thread na may 60° na anggulo ng thread. Ang three-tooth cutting design ay nagbibigay-daan sa sabay-sabay na pagpoproseso ng maraming thread path, pagpapabuti ng machining efficiency at pagbabawas ng cutting load, ginagawa itong partikular na angkop para sa high-precision thread manufacturing.
Ang pamutol ay tugma sa isang malawak na hanay ng mga materyales, kabilang ang carbon steel, alloy steel, stainless steel, cast iron, aluminum alloys, copper alloys, at iba pang non-ferrous na metal. Sa pinakamainam na hanay ng pagganap para sa mga materyales hanggang sa HRC≤45°, pinapanatili nito ang matatag na pagganap ng pagputol at pinahabang buhay ng tool, na tinitiyak ang mataas na katumpakan at pagkakapare-pareho sa thread machining.
Available ang isang flexible na hanay ng mga detalye, na sumasaklaw sa mga sukat mula No.0-80 hanggang 7/16"-14, na nag-aalok ng iba't ibang cutting diameter at epektibong haba ng pagputol upang matugunan ang iba't ibang lalim ng threading at mga kinakailangan sa machining. Ang maingat na idinisenyong helix na anggulo ay nagpapaliit sa cutting resistance at tool wear, na ginagawang mahusay na pagpipilian ang cutter na ito para sa parehong mass production at high-precision machining.chining application machining.
