Sukatan na thread: Alinsunod sa mga pamantayan ng ISO, ang anggulo ng thread ay 60°.
Single thread: Tumutukoy sa isang thread na may mas maliit na pitch, kadalasang ginagamit para sa precision machining.
Inirerekomendang machining hardness: HRC ≤ 45°

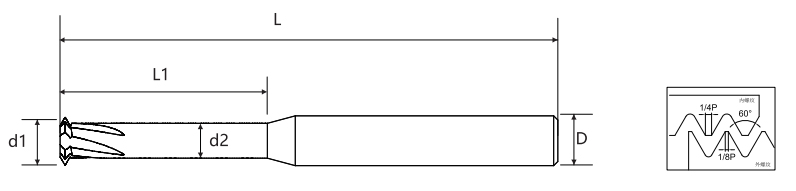

| Pitch | Magaspang na Ngipin UNC | Mabuting Ngipin UNF | Diameter ng Blade d1 | Diameter ng Pag-iwas d2 | Mabisang Haba ng Blade L1 | Diameter ng hawakan D | Pangkalahatang Haba L | Bilang ng Blade | Diameter ng Bottom sa Ibaba |
| 0.2 | M0.8*P0.2 | 0.55 | 0.29 | 1.5 | 4 | 50 | 2 | 0.6 | |
| 0.25 | M1*P0.25 | M1.4*0.25 | 0.7 | 0.375 | 3.1 | 4 | 50 | 3 | 0.75 |
| 0.25 | M1.2*P0.25 | M1.4*0.25 | 0.9 | 0.575 | 3.8 | 4 | 50 | 3 | 0.95 |
| 0.3 | M1.4*P0.3 | 1.05 | 0.66 | 4 | 4 | 50 | 3 | 1.1 | |
| 0.35 | M1.6*P0.35 | 1.2 | 0.745 | 5 | 4 | 50 | 3 | 1.25 | |
| 0.35 | M1.8»P0.35/M2.0*P0.35 | 1.4 | 0.945 | 5.6 | 4 | 50 | 3 | 1.45 | |
| 0.4 | M2*，P0.4 | 1.54 | 1.02 | 6 | 4 | 50 | 3 | 1.6 | |
| 0.45 | M2.5*P0.45 | 1.96 | 1.375 | 6.5 | 4 | 50 | 3 | 2.1 | |
| 0.5 | M3-P0.5 | 2.4 | 1.75 | 8 | 4 | 50 | 3 | 2.5 | |
| 0.5 | M8*P0.5 | 6 | 5.35 | 20 | 6 | 50 | 3 | 7.5 | |
| 0.6 | M3.5*P0.6 | 2.75 | 1.97 | 10 | 4 | 50 | 3 | 2.9 | |
| 0.7 | M4*P0.7 | 3.15 | 2.24 | 10 | 4 | 50 | 3 | 3.3 | |
| 0.75 | M4.5*P0.75 | 3.5 | 2.525 | 12 | 4 | 50 | 3 | 3.8 | |
| 0.75 | M8*P0.75 | 6 | 5.025 | 20 | 6 | 50 | 3 | 7.3 | |
| 0.8 | M5-P0.8 | 4 | 2.96 | 12 | 4 | 50 | 3 | 4.2 | |
| 1 | M6*P1 | 4.8 | 3.5 | 15 | 6 | 50 | 3 | 5 | |
| 1.25 | M8*P1.25 | 6 | 4.375 | 20 | 6 | 50 | 3 | 6.8 | |
| 1.25 | M8*P1.25 | 6.5 | 4.87 | 25 | 8 | 60 | 3 | 6.8 | |
| 1.5 | M10*P1.5 | 8 | 6.05 | 25 | 8 | 60 | 3 | 8.5 | |
| 1.5 | M10*P1.5 | 8.2 | 6.25 | 31 | 10 | 75 | 4 | 8.5 | |
| 1.5 | M14*P1.5 | 12 | 10.05 | 30 | 12 | 75 | 4 | 12.5 | |
| 1.75 | M12-P1.75 | 10 | 7.725 | 30 | 10 | 75 | 4 | 10.3 | |
| 2 | M14*P2 | 10 | 7.4 | 36 | 10 | 75 | 4 | 12 | |
| 2 | M14*P2 | 11.6 | 9 | 45 | 12 | 75 | 4 | 12 | |
| 2 | M16，P2 | 12 | 9.4 | 45 | 12 | 75 | 4 | 14 | |
| 2 | M16，P2 | 13.6 | 11 | 50 | 14 | 100 | 5 | 14 | |
| 2.5 | M18-M20*P2.5 | 14 | 10.75 | 48 | 14 | 90 | 5 | 15.5 | |
| 2.5 | M20*P2.5 | 16 | 12.75 | 61 | 16 | 100 | 5 | 17.6 | |
| 3 | M24*P3.0 | 14 | 10.1 | 48 | 14 | 90 | 5 | 21 | |
| 3.5 | M30*P3.5 | 16 | 11.45 | 50 | 16 | 90 | 5 | 26.5 |

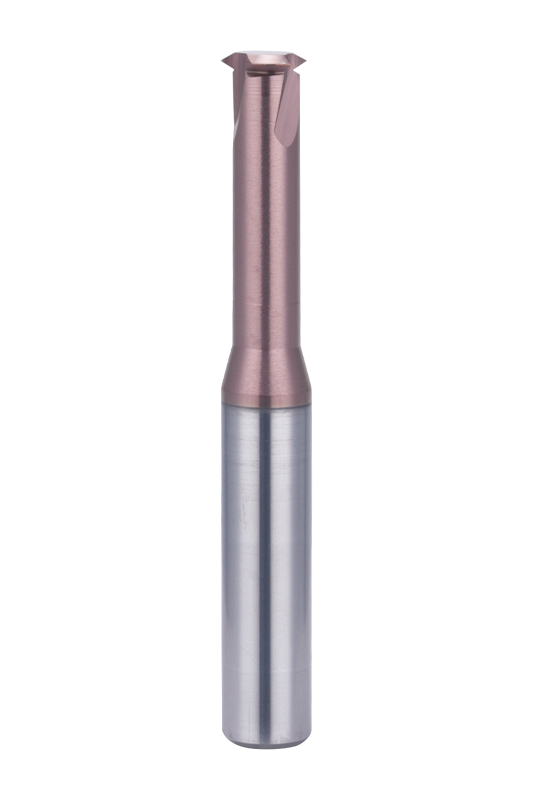

Ang 60° Metric Single Tooth Thread Milling Cutter ay idinisenyo para sa precision threading applications sa carbon steel, alloy steel, stainless steel, aluminum alloys, at copper alloys. Ginawa mula sa solid carbide at pinahusay na may coating treatment, pinapabuti ng tool ang wear resistance at binabawasan ang material adhesion. Pinaliit ng geometry nito ang mga puwersa ng pagputol, ino-optimize ang paglikas ng chip, at pinahuhusay ang katatagan ng machining.
Sinasaklaw ng seryeng ito ang mga sukat ng panukat na thread mula M0.8 hanggang M30, na may malawak na hanay ng diameter upang matugunan ang iba't ibang pangangailangan sa threading. Binabawasan ng single-tooth threading method ang mga cutting load at spindle torque na kinakailangan habang binabawasan ang stress ng tool, na nag-aambag sa mas mataas na katumpakan ng machining. Ang epektibong haba ng pagputol at mga sukat ng shank ay na-optimize upang balansehin ang higpit at flexibility, na ginagawang angkop ang tool para sa parehong maliliit na bahagi ng katumpakan at mas malaking thread machining.
Ang single-tooth threading method ay katugma sa parehong blind at through-hole application at hindi pinipigilan ng thread pitch, na ginagawa itong adaptable sa iba't ibang uri ng thread. Kung ikukumpara sa mga tradisyunal na gripo, binabawasan ng paggiling ng sinulid ang mga puwersa ng pagputol at pinahuhusay ang pagiging maaasahan ng proseso para sa mga bahaging may manipis na pader at mga materyales na mahirap gamitin sa makina.
