• High-toughness substrate na sinamahan ng high-performance coating, lalo na angkop para sa pre-hardened steel processing.
• Pinapababa ng positibong-anggulo ng cutting edge ang disenyo ng chip at nagdudulot ng mas magandang hitsura.

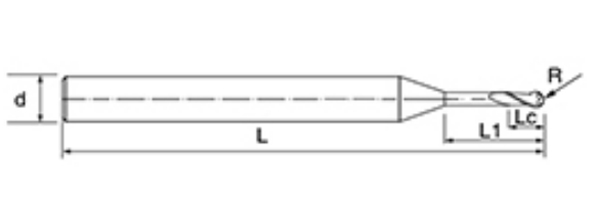

| Hindi. | diameter D | R Anggulo R | Haba ng plauta Lc | Epektibong Haba L1 | Pangkalahatang Haba L | Shank Dia d | Bilang ng Blade F |
| NNH-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D1-L5 | 1 | 0.5 | 1 | 5 | 50 | 4 | 2 |
| NNH-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L4 | 1.5 | 0.75 | 1.5 | 4 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D2-L6 | 2 | 1 | 2 | 6 | 50 | 4 | 2 |
| NNH-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNH-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
| NNH-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
| NNH-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 6 | 2 |
| NNH-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 6 | 2 |
| NNH-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 6 | 2 |
| NNH-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNH-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNH-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNH-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNH-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 6 | 2 |
| NNH-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 6 | 2 |
| NNH-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D3-L25 | 3 | 1.5 | 3 | 25 | 75 | 6 | 2 |
| NNH-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
| NNH-2BSP-D4-L10 | 4 | 2 | 4 | 10 | 50 | 6 | 2 |
| NNH-2BSP-D4-L12 | 4 | 2 | 4 | 12 | 50 | 6 | 2 |
| NNH-2BSP-D4-L15 | 4 | 2 | 4 | 15 | 50 | 6 | 2 |
| NNH-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNH-2BSP-D4-L25 | 4 | 2 | 4 | 25 | 60 | 6 | 2 |
| NNH-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| Serye ng Tool | diameter | Radius | Corner Radius | Haba ng plauta | Epektibong haba | Pangkalahatang haba | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNH High Speed at High Hardness Carbide End Mills | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.3 | 0 0.3 | 0.5 -0.5 | h5 |
| D1~D3.5 | 0 -0.005 | |||||||||
| D4~D10 | -0.003 -0.015 | R3~R5 | /-0.005 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | 0 0.5 | |||
| D12~D20 | -0.003 -0.018 | R6~R10 | /-0.008 | |||||||

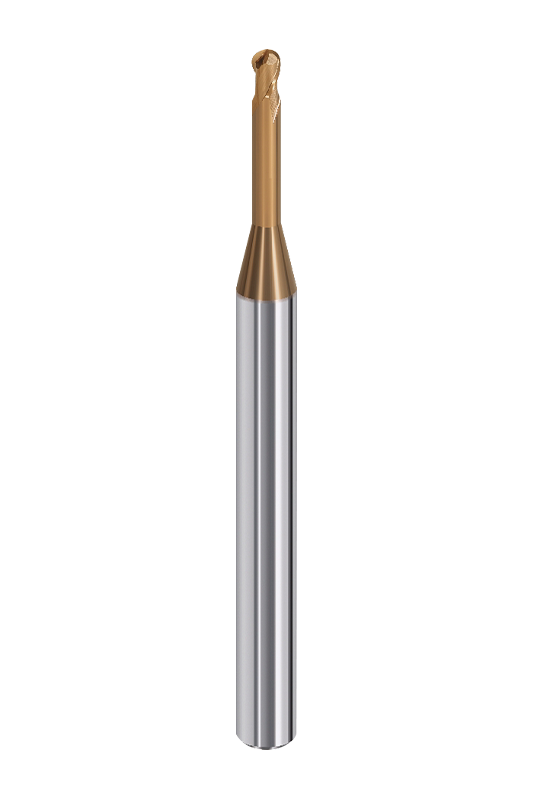

Ang NNH-2BSP high speed 2 flute deep groove ball end mill series ay nag-aalok ng malawak na hanay ng mga sukat, mula 1mm hanggang 4mm ang lapad, na may iba't ibang haba ng flute, diameter ng leeg at epektibong haba ng pagputol. Tinitiyak ng nababaluktot na kumbinasyong sub-modelo na mapipili ng mga user ang pinakaangkop na tool para sa mga partikular na kundisyon sa pagma-machining, sa gayon ay na-optimize ang kahusayan at katumpakan.
Dinisenyo na may malalim na groove ball nose geometry, mainam ang serye para sa pagmachining ng mga kumplikadong curved surface at cavity. Ang 30° helix angle ay nag-o-optimize ng stability at surface finish, na tinitiyak ang maayos na pagganap ng pagputol sa mga high-speed na operasyon habang binabawasan ang stress ng tool at pinapahaba ang buhay ng tool.
Sa mga tuntunin ng teknolohiya sa pagmamanupaktura, ang high speed 2 flute deep groove ball end mill ay gumagamit ng advanced na AlTiSiN coating technology na may substrate ng mga ultra-fine particle (0.4μm). Nagbibigay ito ng mahusay na wear resistance at oxidation resistance. Tinitiyak ng high-precision na pagmamanupaktura ang matatalim na cutting edge at stable na cutting performance, na ginagawa itong angkop para sa mga materyales sa pagma-machine hanggang sa HRC58 na tigas. Ang high-strength carbide substrate ay higit na nagpapahusay sa rigidity at impact resistance, na tinitiyak ang katatagan sa panahon ng high-speed milling.
Ang serye ng NNH-2BSP ay malawakang ginagamit sa machining ng cast iron, alloy steel, pre-hardened steel at ilang heat-treated steel (hanggang sa HRC 55). Ang tool ay may mahusay na wear resistance at thermal stability, at partikular na angkop para sa high hardness material machining at high precision at high speed applications.
