• Nakakamit ng advanced grinding technology ang ultra-high blade diameter at shank diameter accuracy, na angkop para sa precision molds at parts processing.
• Ginagamit ang mataas na wear-resistant coating. Tinitiyak ng arc transition structure ang mataas na resistensya sa pagbasag at nagbibigay-daan sa pangmatagalang pagputol ng tumigas na bakal.

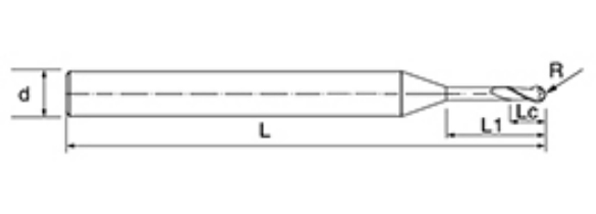

| Hindi. | diameter D | R Anggulo R | Haba ng plauta Lc | Epektibong Haba L1 | Pangkalahatang Haba L | Shank Dia d | Bilang ng Blade F |
| NNC-2BSP-D1-L3 | 1 | 0.5 | 1 | 3 | 50 | 4 | 2 |
| NNC-2BSP-D1-L4 | 1 | 0.5 | 1 | 4 | 50 | 4 | 2 |
| NNC-2BSP-D1-L6 | 1 | 0.5 | 1 | 6 | 50 | 4 | 2 |
| NNC-2BSP-D1-L8 | 1 | 0.5 | 1 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D1-L10 | 1 | 0.5 | 1 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D1-L12 | 1 | 0.5 | 1 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D1-L16 | 1 | 0.5 | 1 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L6 | 1.5 | 0.75 | 1.5 | 6 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L8 | 1.5 | 0.75 | 1.5 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L10 | 1.5 | 0.75 | 1.5 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L12 | 1.5 | 0.75 | 1.5 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L14 | 1.5 | 0.75 | 1.5 | 14 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L16 | 1.5 | 0.75 | 1.5 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L18 | 1.5 | 0.75 | 1.5 | 18 | 50 | 4 | 2 |
| NNC-2BSP-D1.5-L20 | 1.5 | 0.75 | 1.5 | 20 | 50 | 4 | 2 |
| NNC-2BSP-D2-L8 | 2 | 1 | 2 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D2-L10 | 2 | 1 | 2 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D2-L12 | 2 | 1 | 2 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D2-L14 | 2 | 1 | 2 | 14 | 50 | 4 | 2 |
| NNC-2BSP-D2-L16 | 2 | 1 | 2 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D2-L18 | 2 | 1 | 2 | 18 | 50 | 4 | 2 |
| NNC-2BSP-D2-L20 | 2 | 1 | 2 | 20 | 50 | 4 | 2 |
| NNC-2BSP-D3-L8 | 3 | 1.5 | 3 | 8 | 50 | 4 | 2 |
| NNC-2BSP-D3-L10 | 3 | 1.5 | 3 | 10 | 50 | 4 | 2 |
| NNC-2BSP-D3-L12 | 3 | 1.5 | 3 | 12 | 50 | 4 | 2 |
| NNC-2BSP-D3-L16 | 3 | 1.5 | 3 | 16 | 50 | 4 | 2 |
| NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 60 | 6 | 2 |
| NNC-2BSP-D3-L20 | 3 | 1.5 | 3 | 20 | 75 | 6 | 2 |
| NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 60 | 6 | 2 |
| NNC-2BSP-D3-L26 | 3 | 1.5 | 3 | 26 | 75 | 6 | 2 |
| NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 60 | 6 | 2 |
| NNC-2BSP-D3-L30 | 3 | 1.5 | 3 | 30 | 75 | 6 | 2 |
| NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 60 | 6 | 2 |
| NNC-2BSP-D4-L16 | 4 | 2 | 4 | 16 | 75 | 6 | 2 |
| NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 60 | 6 | 2 |
| NNC-2BSP-D4-L20 | 4 | 2 | 4 | 20 | 75 | 6 | 2 |
| NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 60 | 6 | 2 |
| NNC-2BSP-D4-L26 | 4 | 2 | 4 | 26 | 75 | 6 | 2 |
| NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 60 | 6 | 2 |
| NNC-2BSP-D4-L30 | 4 | 2 | 4 | 30 | 75 | 6 | 2 |
| Serye ng Tool | diameter | Radius | Corner Radius | Haba ng plauta | Epektibong Haba | Pangkalahatang Haba | Shank Dia | |||
| D | R | CR | Lc | L1 | L | d | ||||
| NNC Universal Carbide Milling Cutter | D0.1~D0.9 | 0 -0.005 | R0.05~R2 | /-0.005 | CR0.05~CR0.5 | /-0.005 | 0 0.2 | 0 0.3 | 0 0.5 | h5 |
| D1.0~D4.0 | 0 -0.008 | 0 0.3 | 0 0.5 | |||||||
| D1.0~D3.5 | 0 -0.008 | R0.5~R1.75 | /-0.005 | CR0.1~CR0.5 | /-0.005 | 0 0.3 | 0 0.5 | 0 0.5 | h6 | |
| D4.0~D11.0 | 0 -0.012 | R2.0~R5.0 | /-0.008 | CR1.0~CR3.0 | /-0.008 | 0 0.5 | ||||
| D12.0~D20.0 | 0 -0.015 | R6.0~R10.0 | /-0.01 | |||||||

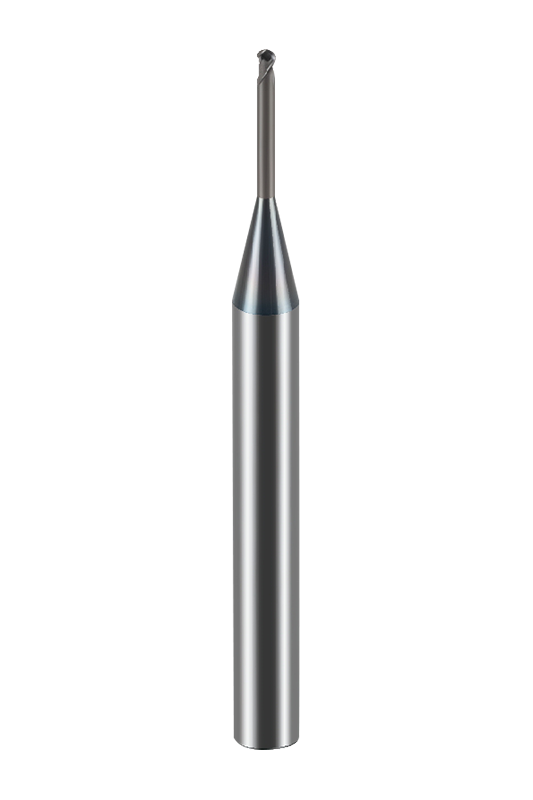

Available ang NNC-2BSP 2-flute deep groove ball nose end mill sa iba't ibang laki, kabilang ang mga diameter na 0.5mm, 1.0mm, 1.5mm at 2.0mm, na nagbibigay ng mga flexible na solusyon para sa iba't ibang pangangailangan sa machining.
Ang espesyal na disenyo ng deep groove ball nose ay nakakatulong na ilisan ang mga chips nang mas maayos at palawigin ang buhay ng tool sa malalim na cavity at kumplikadong contour application. Ang dalawang-flute na configuration ay hindi lamang nagtataguyod ng daloy ng chip, ngunit nagpapanatili din ng isang matatag na cutting edge contact area upang matugunan ang mga pangangailangan ng high-precision contour machining at curved surface transition.
Ang produkto ay ginawa gamit ang mga ultra-fine particle (0.4μm) na substrate at ang pinakabagong chromium-aluminum composite coating na proseso upang matiyak ang mahusay na pagkasuot at paglaban sa init sa ilalim ng mataas na bilis na mga kondisyon. Ang napakahusay na istraktura ng butil ay ginagawang mas matalas ang cutting edge at binabawasan ang epekto at pagkasira sa panahon ng operasyon, habang tinitiyak ng natatanging teknolohiya sa paggiling at buli ang katumpakan ng gilid at makinis na ibabaw.
Angkop para sa magaan na pagputol ng mga karaniwang metal gaya ng carbon steel, die steel, stainless steel at cast iron.
Pagtatag ng negosyo
Mga empleyado
Changzhou Maton Tools Co.,Ltd. is located in the economically developed Yangtze River Delta region.The factory is located in XixiashuHigh-tech Development Zone,a well-known tool town in China. We are 2 Flute Deep Groove Ball Nose End Mills Manufacturers.
Magotantools take the ISO9001 quality system as the standard,under the guidanceof the business philosophy of"zero defect in products"and"zero distance in service",based on the spirit of"integrity","unity"and"exploita- tion",and follow a fair and just company style for management.Product production adopts five-axisand six-axis CNC grinding and machining centers from Germany,Switzerland,Japan,etc.,and is equipped with high-precision testing equipment such as Germany,Japan,and China,so as to meet the needs of production with high quality and quantity.
The company continuously develops various high-performance CNC tools, and has won various national awards. Professional 2 Flute Deep Groove Ball Nose End Mills Company. More than 10 patents,the company's products are mainly used in the defense industry, aerospace industry,automotive industry,electronic products and molds and other fields.
The company's various products are recognized and favored by well-known domestic companies.With infinite technology,infinite creation,and pursuit of excellence,Magotan tools will write future prosperity and dreams with more extraordinary confidence and high-quality quality.
Sasagot kami sa iyo sa loob ng 12 oras pagkatapos matanggap ang pagtatanong sa mga karaniwang araw.
Kami ay mga tagagawa, gumagawa at nagbebenta kami ng aming sarili.
We mainly produce tungsten steel milling cutters, drill bits and other hard alloy tools. Professional 2 Flute Deep Groove Ball Nose End Mills Manufacturers.
Saklaw ng aming mga produkto ang halos buong industriya ng amag, industriya ng depensa, industriya ng aerospace, industriya ng sasakyan, mga produktong elektroniko at iba pang larangan.
Yes, our main focus is on customized products. We develop and produce products based on the drawings or samples provided by customers. Custom 2 Flute Deep Groove Ball Nose End Mills.
We have over 30 units of WALTER from Germany, Makino from Japan, ROLLMATIC from Switzerland, and TTB from Switzerland, with an annual output value of 80 million RMB. We are 2 Flute Deep Groove Ball Nose End Mills Company
Una, pagkatapos ng bawat proseso, nagsasagawa kami ng kaukulang mga inspeksyon. Para sa huling produkto, magsasagawa kami ng 100% buong inspeksyon ayon sa mga kinakailangan ng customer at mga internasyonal na pamantayan;
Pagkatapos, mayroon kaming advanced at kumpletong top-notch testing equipment sa industriya, tulad ng spectral analyzer, metallographic microscope, atbp., na maaaring matiyak ang katatagan at pagkakapare-pareho ng mga cutting tool, habang natutugunan ang mataas na katumpakan na mga kinakailangan sa pagsubok ng mga customer para sa mga cutting tool.
Kapag nag-quote, kukumpirmahin namin sa iyo ang paraan ng transaksyon, FOB, CIF, CNF o iba pang mga opsyon. Kapag gumagawa ng maramihan, kadalasan ay nagsasagawa muna kami ng 30% na paunang bayad, at pagkatapos ay binabayaran ang natitirang balanse sa pagpapakita ng bill of lading. Kadalasang ginagamit namin ang T/T bilang paraan ng pagbabayad, ngunit tinatanggap din ang L/C.
We are 2 Flute Deep Groove Ball Nose End Mills Manufacturers in China. Our Footprints Are Around The World, We provide quality products and services to customers from all over the world.
